SS-Z-01
 Conceal hinge
Material:Zinc alloy Stainless steel
Finishes:SB.PB.SCP.SN.AB.AC
Details
Next



Size(mm)

34×140

28×118

25×118

19×95

16×70

13×60

13×45

28×118

28×118

25×118

19×95

Material

ZA

ZA

ZA

ZA

ZA

ZA

ZA

SS

SS

SS

SS

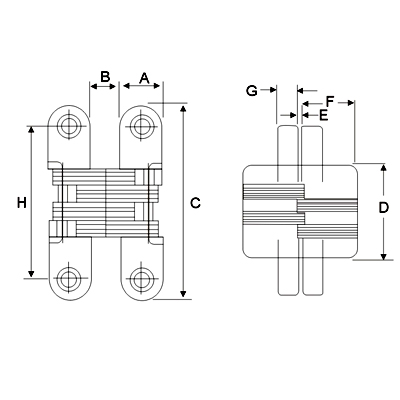

A

34

28

25

19

16

13

13

28

28

25

19

B

27.5

22

17.5

13

11

8

9

25

21.5

17

13

C

139.5

117.5

117.5

95

70

60.6

45

117.5

118

118

96

D

74.5

61.5

64

51.2

34

30.5

18

61.5

61.5

65.3

52.5

E

1.6

1.4

1.6

1.2

0.8

0.8

0.8

1.4

1.4

1

1.2

F

51

41

36

27

22.5

17.5

18

44

41

36.5

27

G

11.5

9.5

11.5

9

7.4

6.2

5

12

9.5

11.3

9

Hole

Outer113.5
Inner 102.5

Outer93
Inner 87

90

73

51

47

30.5

90

Outer 93
Inner 88

90.5

73

T of Door

50mm

40mm

35mm

30mm

25mm

20mm

20mm

40mm

40mm

35mm

30mm

NW/PC

1400g

784g

662g

310g

160g

85g

55g

802g

885g

665g



Bearing
Kg/PC

50Kg

45kg

40kg

35kg

30kg

25kg

20kg

45kg

55kg

50kg

45kg
