SG34503

Round Edge 3-Fold Slide

Width:45MM
Material:Stainless Steel
Finish: SS

Details
Next

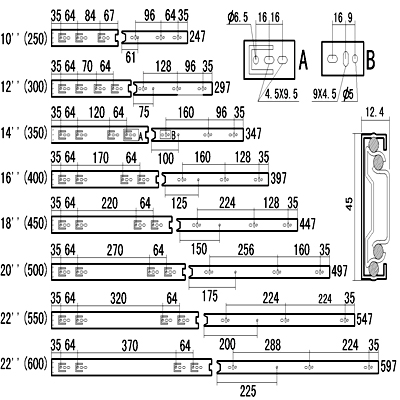

Item No.SG34503
Thickness:1.0mm×1.0mm×1.0mm
Thickness:1.2mm×1.2mm×1.5mm

"Recommended applications:mid-duty,movable cabinet,desk drawer,ordinary
furniture,or any applications requiring 45kgs or less."
Finishing:white zinc-plated,color zinc-plated,black zinc-plated.
Recommended drawer clearance:side installation 12.4mm-0.00mm,+1.00mm
product features: fine adjust of gap is possible in it, quick separation mechanism,absorber ball strip for absorbing impulsive force,and mechanism to prevent drawer from springing out.
Packing method:15pairs/ctn,1pair/polybag,without screws.
